خرید دستگاه کروماتوگراف مایع سری 1220Infinity II ساخت کمپانی Agilent

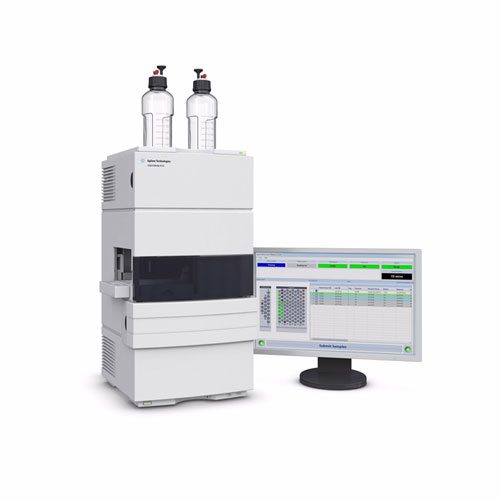

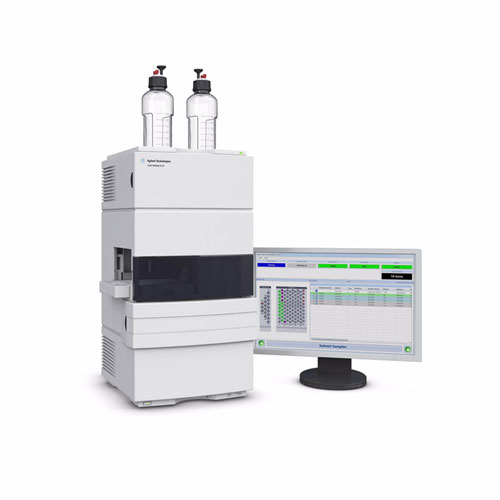

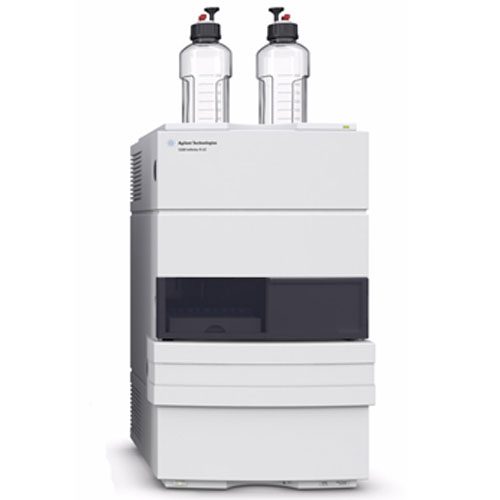

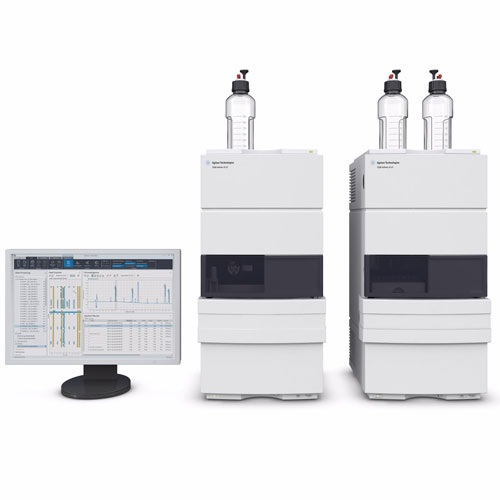

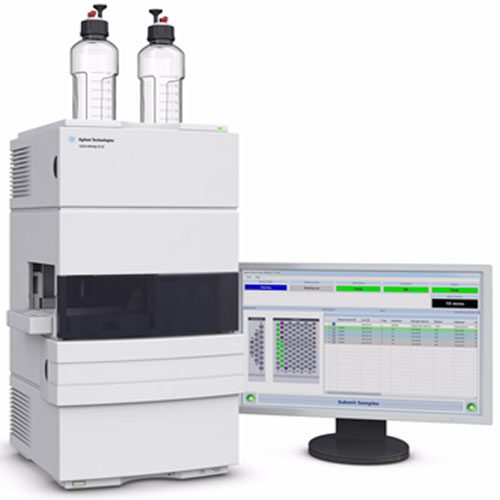

دستگاه کروماتوگراف مایع HPLC 1220Infinity II اجیلنت

دستگاه کرماتوگراف مایع مدل 1220Infinity II یک سیستم کامل برای تجزیه و تحلیل های روزمره HPLC و UHPLC در آزمایشگاه های آنالیتیکال و QA / QC است. بر اساس تکنولوژی اثبات شده سری InfinityLab LC، کیفیت عالی، عملکرد بالا، حداکثر بازدهی با کمترین هزینه را ارائه می دهد.

Weight	30 kg
Dimensions	640 × 370 × 420 mm
Permitted Ambient Temperature	4 ˚C – 55 ˚C
Permitted Ambient Humidity	< 95 % r.h. at 40 ˚C
Hydraulic System	Dual plunger in series pump with proprietary servo-controlled variable stroke drive, floating plungers and passive inlet valve
Gradient Formation	Low pressure dual mixing/gradient capability using proprietary high-speed proportioning valve , Pump delay volume 600 – 900 μl, system delay volume 800 – 1100 μl, dependent on back pressure
Pressure	Operating range 0 – 20 MPa (0 – 200 bar, 0 – 2950 psi) up to 10 mL/min (all versions) , Operating range 0 – 40 MPa (0 – 400 bar, 0 – 5880 psi) up to 5 mL/min , Operating range 0 – 60 MPa (0 – 600 bar, 0 – 8700 psi) up to 5 mL/min
Power Requirement	240 VA
Flow Rate	0.2 – 10.0 mL/min
Flow Precision	<0.07% RSD, or < 0.02 min SD whatever is greater, based on retention time at constant room temperature
Flow Accuracy	± 1% or 10 μl/min whatever is greater
Settable flow range	0.001 – 10 mL/min, in 0.001 mL/ min increments
pH Range	1.0 – 12.5 , solvents with pH < 2.3 should not contain acids which attack stainless steel
Injection Range	0.1 – 100 μL in 0.1 μL increments , Up to 1500 μL with multiple draw (hardware modification required)
Replicate Injections	1 – 99 from one vial
Sample Tray Capacity	100 × 2-mL vials in 1 tray , 15 × 6-mL vials in ½ tray (Agilent vials only) , 40 × 2-mL vials in ½ tray
Minimum Sample Volume	1 μL from 5 μL sample in 100 μL microvial , or 1 μL from 10 μL sample in 300 μL microvial
Sample Viscosity Range	0.2 – 50 cp
Injection Cycle Time	Typically 50 s depending on draw speed and injection volume
Column Oven Capacity	(Internal volume: 6 μL) , One 25-cm column
Oven Temperature Range	5 °C above ambient to 80 °C
Detector	[Diode Array Detector (type: 1024-element diode array, Light source: Deuterium and tungsten, Sampling rate: 80 Hz, Wavelength range: 190-950 nm,, Slit width: 1,2,4,8,16 nm, Diode width: <1 nm)] , [Variable Wavelength Detector (Detection type: Double-beam photometer, Light source: Deuterium lamp, Wavelength range: 190 – 600 nm, Band width: 6.5 nm typical)]
Software	ChemStation , EZChrom , Instrument Utility , LabAdvisor
برند	اجیلنت
